| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | VEGASHINE / OEM |
| मॉडल संख्या: | वीजीएस-बीएफ1404003एचडीएस-जे6412 |
| न्यूनतम आदेश मात्रा: | 1 इकाई |
| पैकेजिंग विवरण: | दफ़्ती |
| प्रसव के समय: | 3 से 10 कार्य दिवस |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 1000 यूनिट |
| CPU: | सेलेरॉन J6412 क्वाड-कोर | टक्कर मारना: | 2×DDR4 260PIN SO-DIMM स्लॉट |
|---|---|---|---|
| प्रदर्शन: | एचडीएमआई + डीपी | ईथरनेट: | 4*इंटेल i225/i226 लैन |
| कॉम: | 1*आरजे45 सीरियल पोर्ट | USB: | 1×USB3.0, 3×USB2.0 |
| आकार: | 178 × 126 × 55 मिमी | शक्ति: | DC 12V-4A |

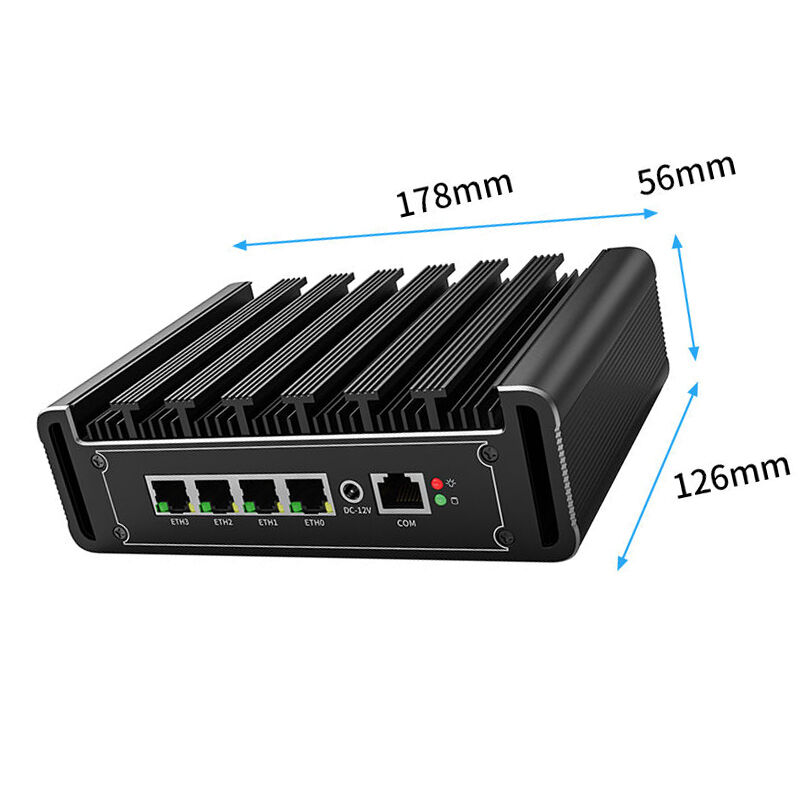

Intel ® J6412 cpu 4*2.5G LAN Firewall computer pFsense soft router fanless mini industry pc
Key Features
Aluminium alloy chassis
Celeron J6412 quad-core quad-thread, main frequency: 2.00GHz
2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB
1×SATA interface, 1×M.2_2280 interface
1×MINI PCI-E interface
1×RJ45 COM port
1×DP+HD interface
1×SIM card slot
DC 12V-4A, 5.5×2.5mm barrel jack
Dimension: 178 × 126 × 55 mm
Specifications
|
Model No. |
VGS-BF1404003HDS-J6412 |
|---|---|
| Chassis Color | Black |
| Material | aluminium alloy chassis |
| Installation | Desktop |
| CPU | Celeron J6412 quad-core quad-thread, main frequency: 2.00GHz |
| Memory | 2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB |
| Storage | 1×SATA interface, 1×M.2_2280 interface |
| Expansion Bus | 1×MINI PCI-E interface |
| Network | Onboard INTEL 2.5G NIC chip |

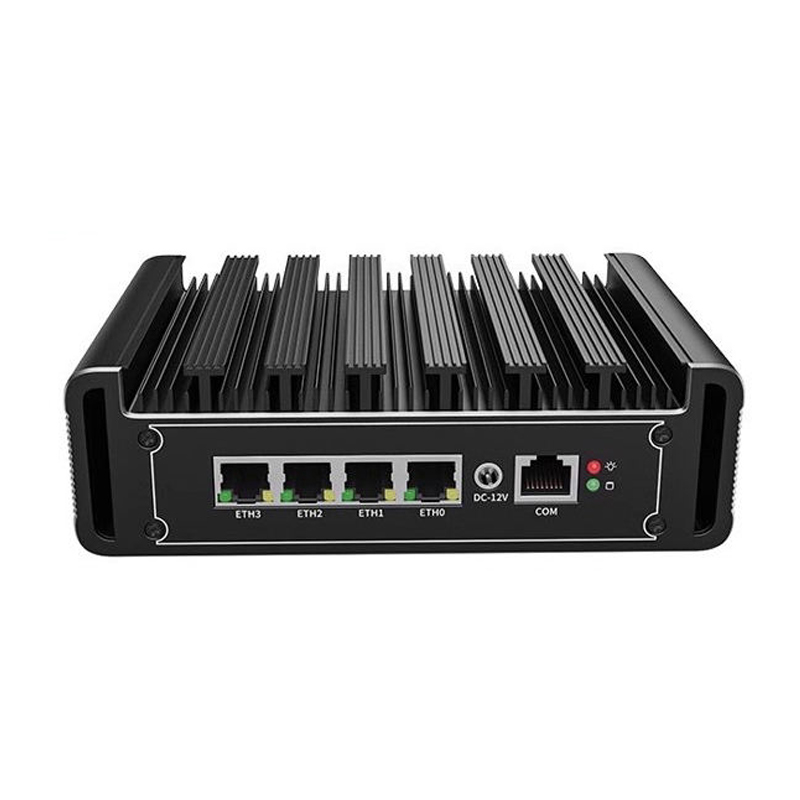

| Front Panel I/O |
4×2.5G Ethernet ports, 1×RJ45 COM port, 1×DC power interface, 1×LED indicator |

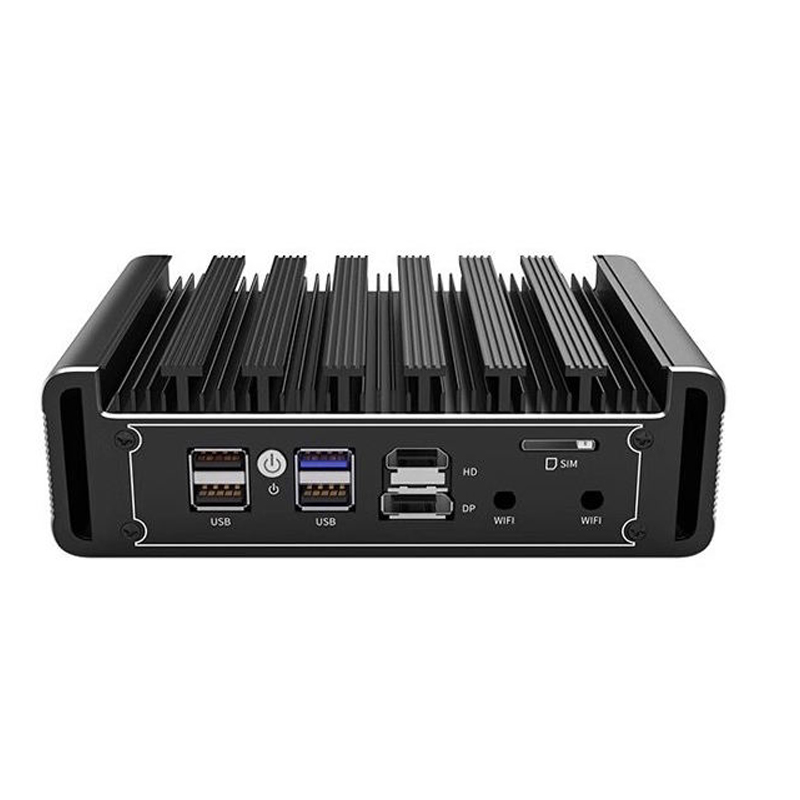

| J6412 Rear Panel I/O |
1×DP+HD interface, 1×USB3.0, 3×USB2.0 1×switch button, 1×SIM card slot |
| Onboard I/O | 1×SATA power interface, 1×CPU fan power socket, 1×7pin SATA |
| Power Supply | DC_IN 12V |
| Dimensions | 178 × 126 × 55 mm |
| Operating Temperature |
0 ~ +50℃(with commercial HDD), -20℃~ +50℃(with industrial SSD), with air flow |
| Humidity | 5 ~ 90% relative humidity, non-condensing |
| Operate System | Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
